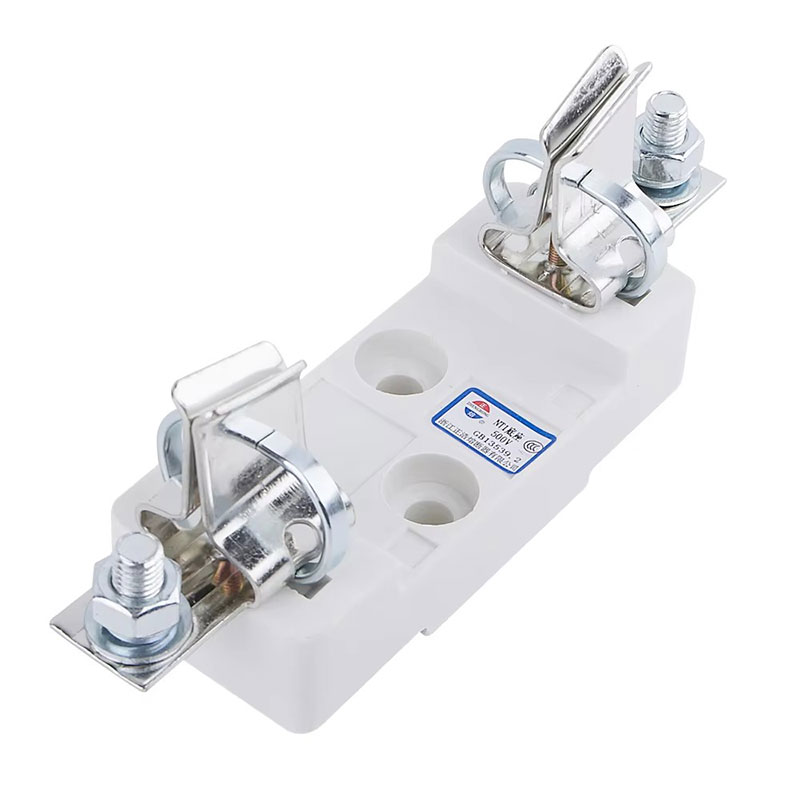

500v 250A Fuse Base
Zhenghao habet provectus technology, et 500v 250a fuse basi potest providere optimum perficientur in usu, faciens illud valde idoneam ad industriae et generalis applications ut caedes absoluta praesidium in medium voltage circuits. Et 500V 250A fuse basi est laudanda et domestice et internationally pro sua diu muneris vitae et Zhenghao habet fortis competitive foro pretium offerre ad customers. 500v 250a Fuse basi obsequitur IEC et CCc Signa, solvendo customers 'curarum et curarum et curas et curarum acutior et usus.
Introductio
Nt1 500v 250a Fuse basi fundatur super current excedit ad certum valorem ad tempus, cum suo calore ad conflandum, ut circuitus est disconnected; A vena protectoris fit per hoc principium. 500v 250a Fuse basi ad electrica appliance quod fuses ad conflandum et erumpit in circuitu cum suo calore cum current excedit ad certum valorem. Fuse est late in altum et humilis intentione potentia distribution ratio et imperium ratio et electrica apparatu, ut brevi circuitu et oercurrent praesidium fabrica.

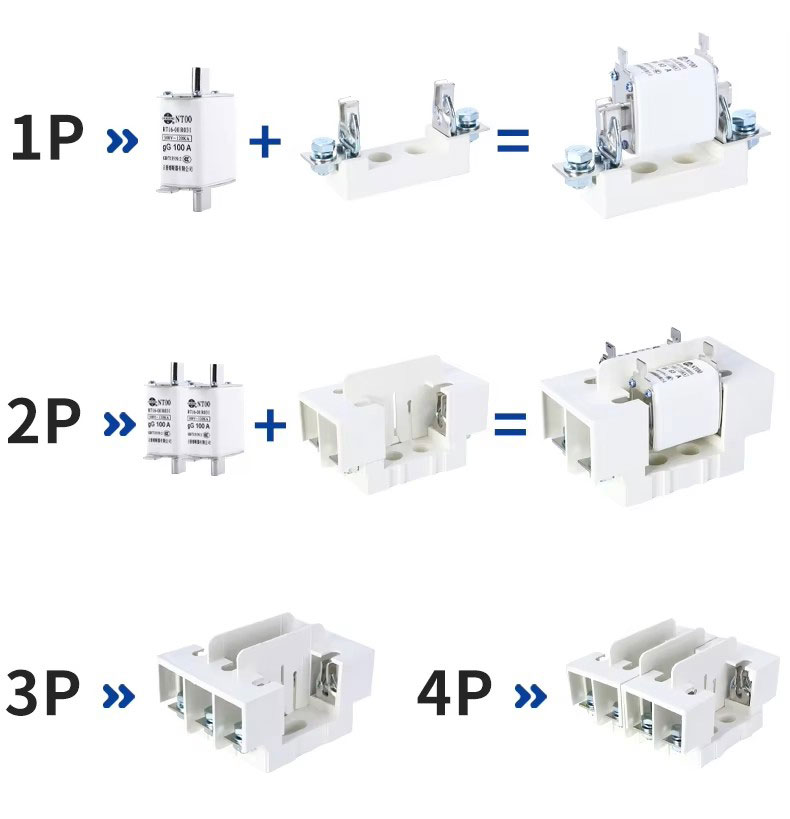

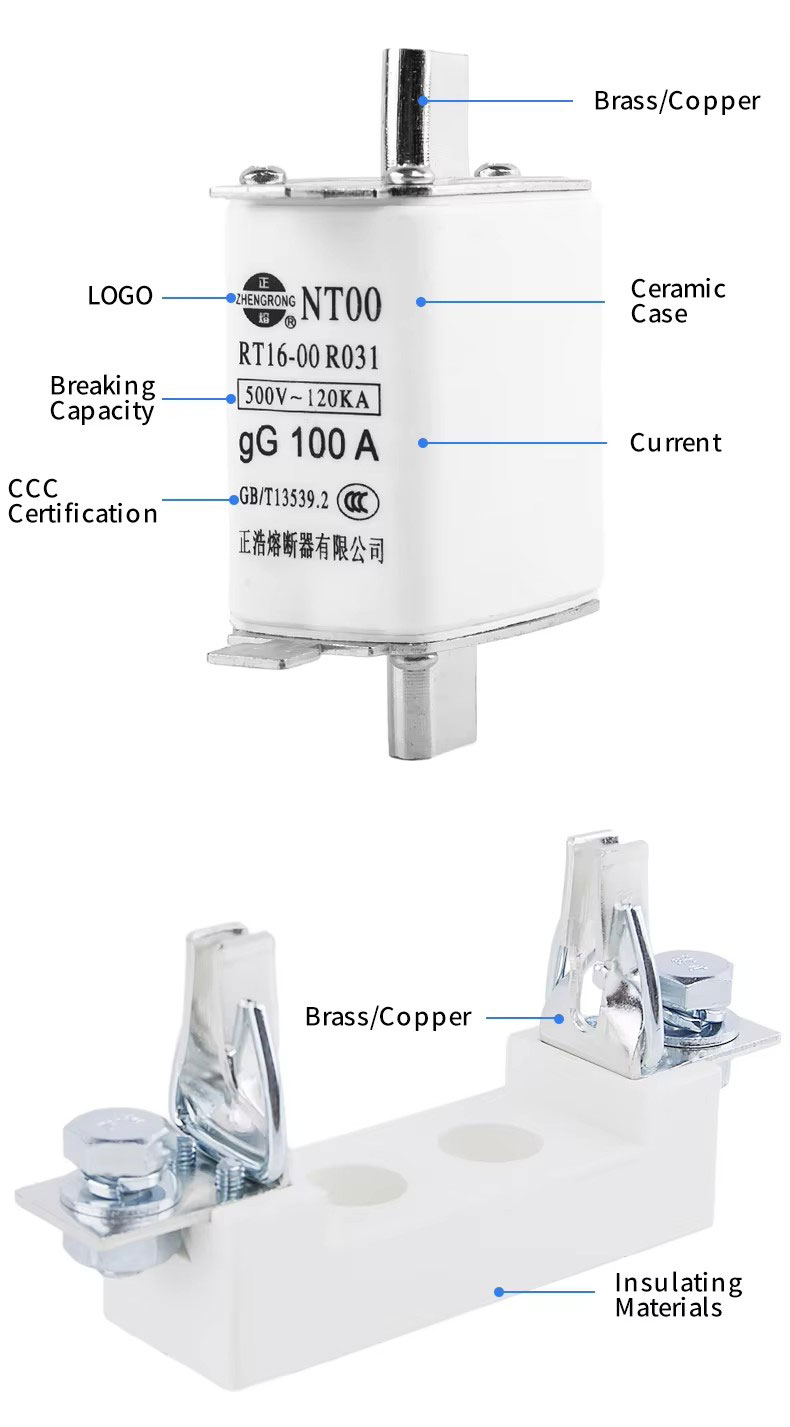

The base is usually composed of a plastic-pressed shell, contacts and fusible parts, which can be composed of a polyphase structure and is suitable for various electrical lines as the support parts of the fuse body.500V 250A Fuse Base is the support structure of the fuse, its main function is to fix the fuse, to prevent it from moving or damage when the circuit is interrupted.
Features & Benefits
STRICTUM
Facile reponere
Disconnected Circuit
Applicatio
Nt1 500v 250a Fuse basi sunt late in industriae et commercial applications et sunt magna pars electrica systems.
Key attributa
Industria, propria attributa
| Effrego capacity | Altum |
Alia attributa
| ORDO | Zhejiang, Sina |
| Current Rated | 250A, 100A, 32a, 50A, 200A |
| Notam nomen | Zhengrong |
| Model Number | NT1 |
| Salus signa | IEC |
| Notus | Zhengrong |
| Product Name | NH Fuse Links et Base |
| Rated voltage | 500V |
| Current Rated | 250A |
| Certificatorium | CE, CCC |
| Colo | Alba / Nigrum |
| Ministerium | ODM/OEM |
| Fuse magnitudine | CENSUS |
| Fabrica historia | XL + annis |
| Sarcina | Vexillum sarcina |
Packaging et partus
| Vendere Unitates: | Unum item |
| Single Package Size: | 15x7x10 cm |
| Una crassa pondus: | 1.000KG |
DUCEO
| Quantitas (pieces) | 1-100 | 101-1000 | 1001-10000 | > (X) |
| Duc Tempus (diebus) | 31 | 35 | 40 | Ut agi |
Display Products

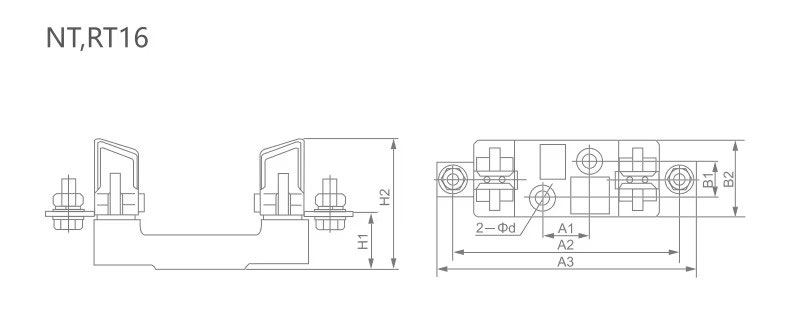

Specificatio
| Exemplar | Dimensionem (mm) | |||||||
| A1 | A2 | A3 | B1 | B2 | H1 | H2 | Φd | |
| NT1, RT16-1 | 25 | 175 | 197 | 25 | 56 | 32 | 80 | 10.5 |
| NT2, RT16-2 | 25 | 200 | 225 | 25 | 61 | 35 | 95 | 10.5 |
| NT3, RT16-3 | 25 | 210 | 251 | 40 | 61 | 35 | 100 | 10.5 |
| NT4, RT16-4 | 44 | 260 | 309 | 45 | 87 | 40 | 140 | 10.5 |
